Livescope Power Guide: Battery Types, Sizes, and Setups

Garmin LiveScope has changed how people fish. Now, anglers can see fish and things under the water in real time because of clear sonar images. To get the most out of this new tool, you must have a reliable power source. The one you pick, how big it is, and how you set it up all matter. It is not just about running the unit. A good setup gives you a clear sonar image, makes you fish longer, and makes your system easy to carry. So, knowing how to power your LiveScope is important if you want to be better at fishing.

Understanding LiveScope’s Power Needs

LiveScope systems give you a lot of power, but they use a lot, too. These systems need a steady, even flow of voltage to work well. If the power goes up and down, you may see the screen change, the picture flicker, or the system might even shut off for a bit. This gets in the way when you want to look under the water. A normal cranking battery is not a good pick for LiveScope. That type is only made to give fast power for just a moment to start an engine. It is not good for steady use.

LiveScope runs best with a deep-cycle battery. A deep-cycle battery gives one steady stream of power for a long time. It also holds up well to being all the way used, charged, and then used again. If you want to use the right LiveScope battery, start by thinking about the kind you want to use first. The type you choose can really change how your system works.

Recomended Read : Molten Salt Battery Innovations

Battery Types: Lithium vs. Lead-Acid

In the past, people would use lead-acid batteries for their boat electronics, like flooded, AGM, and Gel types. These batteries do not cost much at first. But, they give some big problems when you use them with LiveScope.

• Lead-Acid (SLA, AGM, Gel):
  • Pros: The first price is lower, and you can get these almost anywhere.
  • Cons: These are big and heavy, so they are hard to move around. They take more time to fully charge, often about 8 to 14 hours. As you use the battery, the voltage goes down a lot, and that makes your image quality bad. Life is short, usually only 300 to 500 uses, and you may need to put in more work to keep them running if they are flooded types. When it is cold, these batteries have even more issues.
• Lithium Iron Phosphate (LiFePO4 or LFP):
  • Pros: Most people choose this for LiveScope and other water gadgets that need a lot of power.
    • Lightweight and Small: This battery can be up to 70% lighter than lead-acid batteries. That makes it simple to move and use your gear.
    • Steady Voltage: It keeps its voltage the same almost the whole time, so you see clear sonar images. That gives it a big win over lead-acid batteries.
    • Quick Charging: You get a full charge in just 1 to 3 hours, so you wait less.
    • Lasts Longer: This battery can go through way more charge cycles (up to 3,

Battery Sizes (Amp-Hours) and Voltage

The best size for your LiveScope battery depends on how long you want it to last. It also depends on how much power your device and the other parts, like the chartplotter or extra transducers, need. Power use is usually shown in Amperes (A) or Watts (W).

• Amp-Hours (Ah): This number tells you how many amps the unit can send out in one hour. A single LiveScope unit will often need a 20Ah to 50Ah 12V lithium battery.
  • A 20Ah lithium battery will keep one unit going for about 8 to 10 hours.
  • A 30Ah to 50Ah lithium battery is good if you want to use it all day (roughly 10 to 18 hours or even more). These also give a good balance of how long you can run your unit and how easy it is to carry.
  • If you use more than one device at the same time or you plan on being out awhile, you will want a 60Ah to 100Ah one or even something bigger.
• Voltage: Most LiveScope units use a 12V battery. Some lithium batteries made just for LiveScope can give 14.8V or 16V. A little more voltage can help your system. It can give you clearer pictures, quicker changes on-screen, and a bit more time to run than a 12V battery with the same Ah.

Setup Configurations

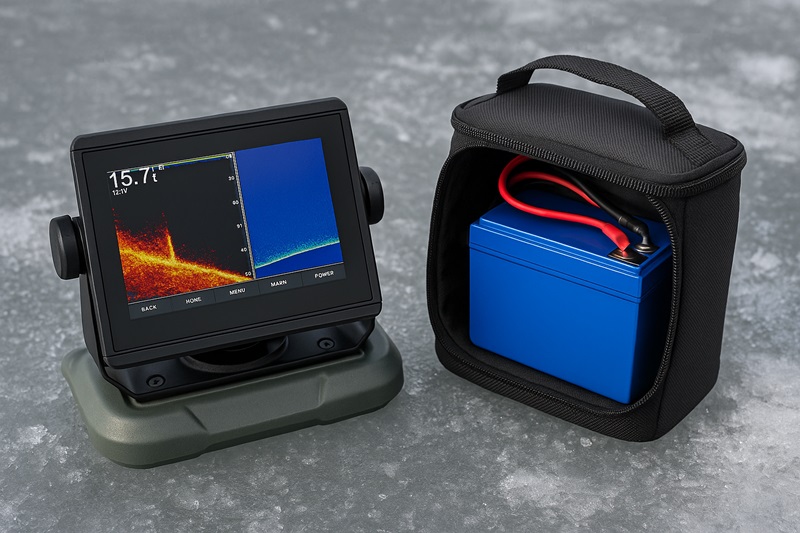

• Portable Setups: For ice fishing, kayak fishing, or fishing from the shore, it is good to use a small and light LiFePO4 power source. A 20-30Ah size can work well. You can keep it in a portable shuttle or a special bag. These types often have charging ports built in. Some even give you USB plugs. This way, you can use them to charge other devices, too.

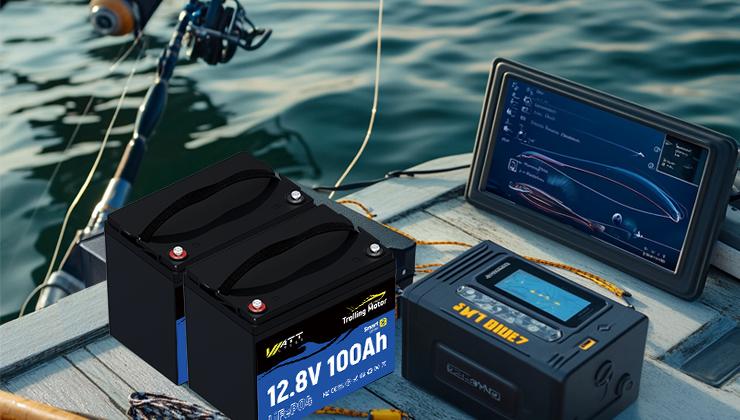

• Boat Installations: If you have a bigger boat, you can go with a larger LiFePO4 power source, with 50Ah or more. You can connect it straight to your boat’s power system. A setup like this often gives power to your electronics only, so you do not get problems from the trolling motor or the main motor. Always use the right fuses and wires to keep things safe.

In the end, choosing the right Livescope battery is very important for a good fishing trip. A lead may be cheaper at first. But a LiFePO4 lithium one will give you more. It lasts longer, is lighter, gives steady power, and works better with your Garmin LiveScope. If you think about the type, size, and the way you want to use it, you will get clear pictures, more time on the water, and many good years with your new sonar.
